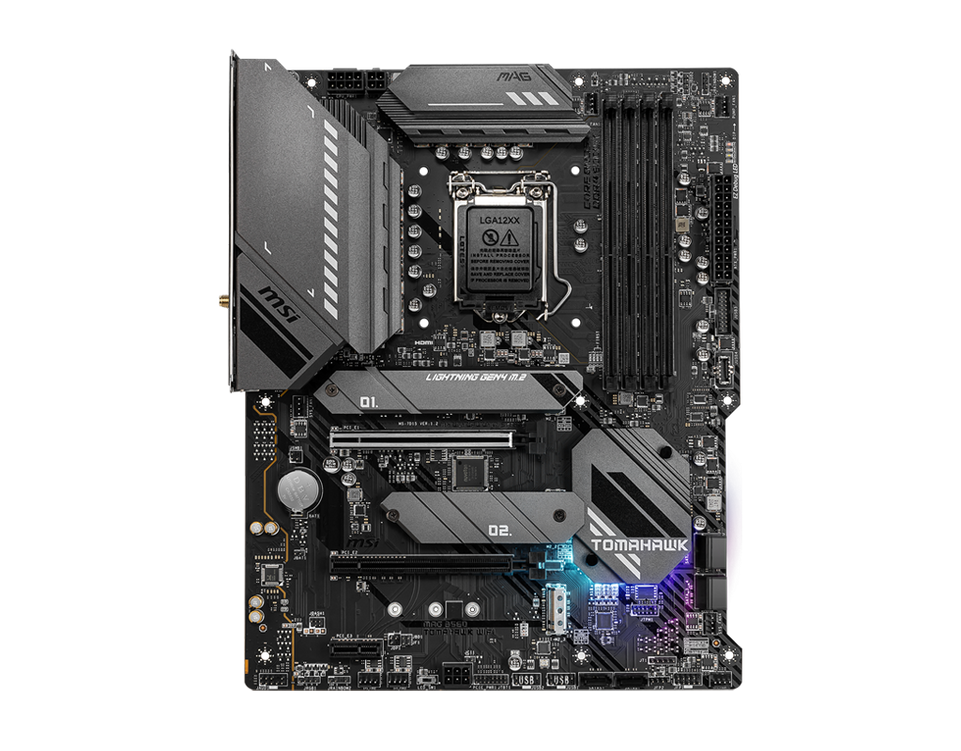

Processor

Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core^™ Processors, Pentium^® Gold And Celeron

Processor Socket Lga1200

1. Please Go To Intel.Com For Compatibility Information.

Chipset

Intel^® B560 Chipset

Expansion Slot

4 X Ddr4 Memory Slots, Support Up To 128gb ¹

Supports 1r 2133/ 2666/ 2933 Mhz For 10th Gen Intel^® Cpu (By Jedec & Por)

Supports 1r 2133/ 2666/ 2933/ 3200 Mhz For 11th Gen Intel® Cpu (By Jedec & Por)

Max Overclocking Frequency:

1dpc 1r Max Speed Up To 5066 Mhz, 1dpc 2r Max Speed Up To 4600+ Mhz, 2dpc 1r Max Speed Up To 4266+ Mhz, 2dpc 2r Max Speed Up To 4000+ Mhz

Supports Dual-Channel Mode

Supports Non-Ecc, Un-Buffered Memory

Supports Intel^® Extreme Memory Profile (Xmp)

1. Please Refer Www.Msi.Com For More Information On Compatible Memory.

Expansion Slot

2x Pcie X16 Slots

Pci_E1 (From Cpu)

1. Support Up To Pcie 4.0 For 11th Gen Intel^® Cpu

2. Support Up To Pcie 3.0 For 10th Gen Intel ® Cpu

Pci_E2 (From B560 Chipset)

1. Support Up To Pcie 3.0 X4

1x Pcie 3.0 X1 Slot (From B560 Chipset)

Onboard Graphics

1x Hdmi 2.0b With Hdr Port, Supports A Maximum Resolution Of 4k 60hz

1x Displayport 1.4 Port, Supports A Maximum Resolution Of 4k 60hz

1. Available Only On Processors Featuring Integrated Graphics

2. Graphics Specifications May Vary Depending On The Cpu Installed.

Multi-Gpu

Supports 2-Way Amd^® Crossfire^™ Technology

Storage

6x Sata 6gb/S Ports (From B560 Chipset)

3x M.2 Slots (Key M)

M2_1 Slot (From Cpu): Available Only On 11th Gen Intel Cpu, Supports Up To Pcie 4.0 X4, Supports 2242/ 2260/ 2280/ 22110 Storage Devices

M2_2¹² Slot (From B560 Chipset): Supports Up To Pcie 3.0 X4, Supports Sata Up To 6gb/S, Supports 2242/ 2260/ 2280 Storage Devices

M2_3 Slot (From B560 Chipset): Supports Up To Pcie 3.0 X4, Supports 2242/ 2260/ 2280 Storage Devices, Intel Optane Memory Ready

Supports Intel Smart Response Technology For Intel Core Processors

1. Sata2 Will Be Unavailable When Installing M.2 Sata Ssd In The M2_2 Slot.

2. Pci_E2 Will Be Unavailable When Installing M.2 Ssd In The M2_3 Slot.

3. Before Using Intel^® Optane^™ Memory Modules, Please Ensure That You Have Updated The Drivers And Bios To The Latest Version From Msi Website.

Usb

Intel B560 Chipset

1x Usb3.2 Gen 2x2 20gbps Port (Type-C Port On The Back Panel)

1x Usb 3.2 Gen 2 10gbps Port (1 Type-C Available Through The Internal Connector)

6x Usb 3.2 Gen 1 5gbps Ports (4 Type-A Ports On The Back Panel, 2 Type-A Ports Available Through The Internal Connector)

4x Usb 2.0 Ports On The Back Panel

Audio

Realtek Alc897 Codec

7.1-Channel High Definition Audio

Supports S/Pdif Output

Lan

1x Realtek Rtl8125b 2.5gbps Lan Controller

Wireless Lan & Bluetooth

The Wireless Module Is Pre-Installed In The M.2 [Key-E] Slot

Supports Mu-Mimo Tx/Rx, 2.4ghz/ 5ghz/ 6ghz ¹(160mhz) Up To 2.4gbps

Supports 802.11 A/ B/ G/ N/ Ac/ Ax

Supports Bluetooth^® 5.2², Fips, Fisma

1. Wi-Fi 6e 6ghz May Depend On Every Country’s Regulations And Will Be Ready In Win10 21h1.

2. Bluetooth 5.2 Will Be Ready In Win10 21h1

Internal Connectors

1x 24-Pin Atx Main Power Connector

1x 8-Pin Atx 12v Power Connector

1x 4-Pin Atx 12v Power Connector

1x 6-Pin Pcie Power Connector

6x Sata 6gb/S Connectors

3x M.2 Slots (M-Key)

1x Usb 3.2 Gen 2 10gbps Type-C Port

1x Usb 3.2 Gen 1 5gbps Connector (Supports Additional 2 Usb 3.2 Gen 1 5gbps Ports)

2x Usb 2.0 Connectors (Supports Additional 4 Usb 2.0 Ports)

1x 4-Pin Cpu Fan Connector

1x 4-Pin Water-Pump Fan Connector

5x 4-Pin System Fan Connectors

1x Front Panel Audio Connector

2x System Panel Connectors

1x Chassis Intrusion Connector

1x Clear Cmos Jumper

1x Tpm Module Connector

1x Tbt Connector (Supports Rtd3)

1x Tuning Controller Connector

Led Feature

1x Ez Led Control Switch

2x 4-Pin Rgb Led Connectors

2x 3-Pin Rainbow Led Connectors

4x Ez Debug Led

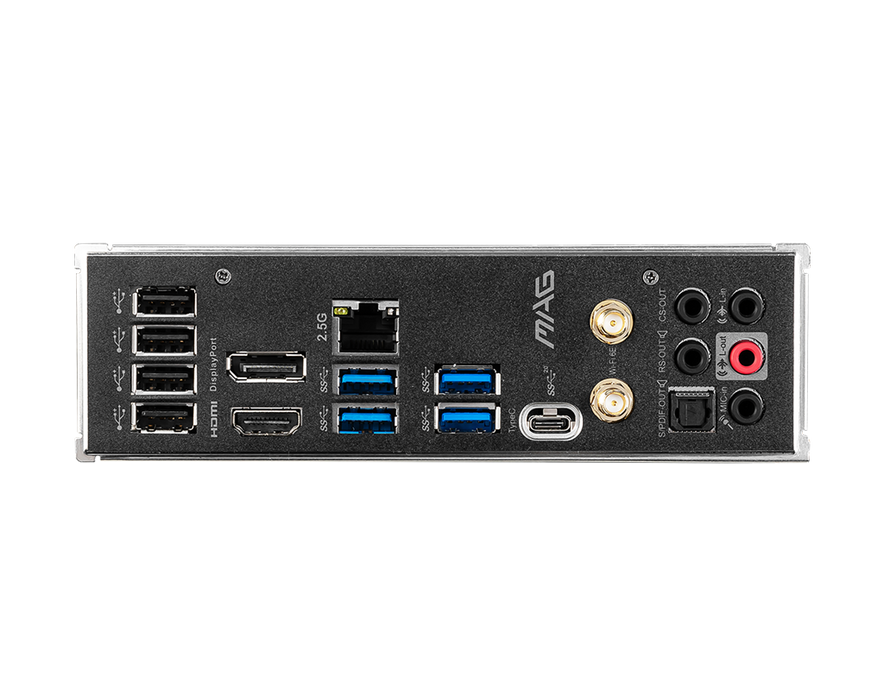

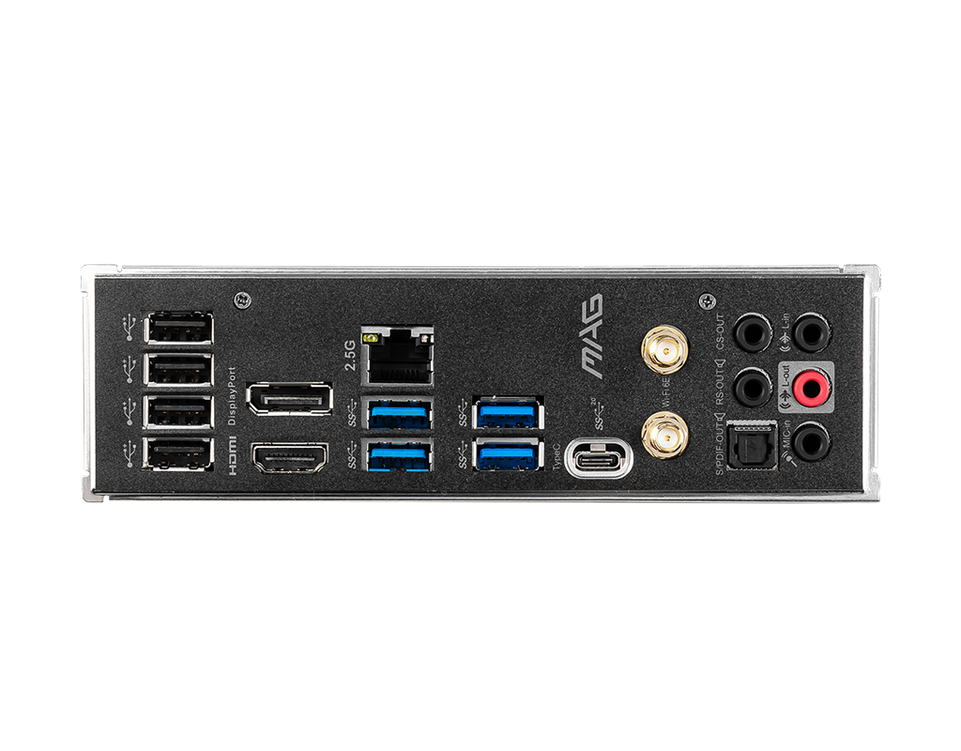

Back Panel Ports

Usb 2.0

Displayport

2.5g Lan Port

Wi-Fi / Bluetooth Antenna

Hd Audio Connectors

Hdmi

Usb 3.2 Gen 1 5gbps Type-A

Usb 3.2 Gen 1 5gbps Type-A

Usb 3.2 Gen 2x2 20gbps Type-C

Optical S/Pdif Out
